Testing Device

A testing device tests the various functions of the terminal device, such as voltage and current measurement and inspection of the terminal device.

Overview

The testing device tests whether the terminal device runs normally before installation on the site. It checks the control signal of the switch received from the terminal device, and the status signal of the switch received by the terminal device. The testing device also solved the problem regarding safety by testing the voltage and current measurement of the terminal device at a low voltage and current, because a high voltage and high current are supplied to the line on the spot. The device supports the failure scenario function so that actual line failure can be tested at a low voltage and low current.

Solution

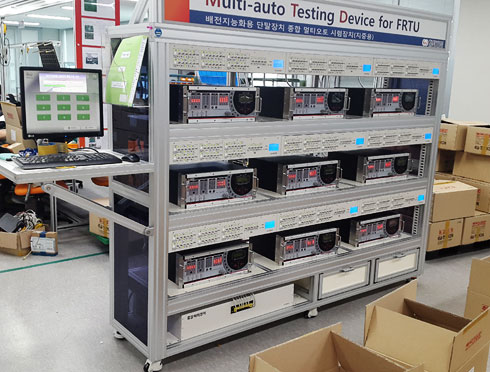

Multiple Auto Testing Device for Terminal Devices

The multiple auto testing device for terminal devices automatically tests all function tests of the power terminal equipment.

Characteristics

The contact, control, voltage, and current can be tested.
Supporting manual and automatic individual communication tests and multiple communication tests
Test results can be checked, and the test history can be viewed.
Displaying the terminal device status during the function test
Inspection Device
For processing : basic processing, performance improvement processing, multi-functional processing, integrated processing, intelligent processing, recloser
For underground : basic underground, performance improvement underground, multi-functional underground, intelligent underground, door attachment underground, 4 circuit 5 circuit 6 circuit

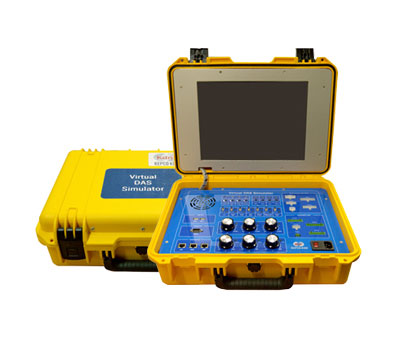

Switch Testing Device

A device used to increase the reliability of the distribution automation system. This device tests the functions of the main device or terminal device using a 15-inch monitor, external operation button, communication port, and an installed simulation program.

Characteristics

Displaying and Controlling the Switch Status
Measuring the Voltage and Current
Creating a Failure Scenario
Linking with Simulation Program

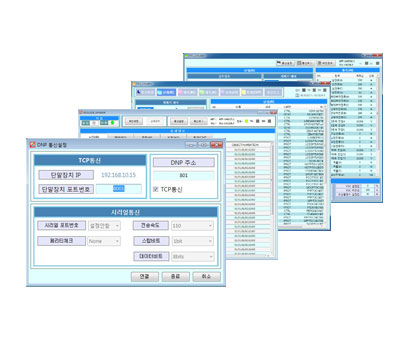

Main Device Simulation Program
TCP/IP, Serial Communication
Supporting DNP 3.0 and IEC61850 protocols
Monitoring Communication Packets
Status Display and Control Command

Terminal Device Testing Device

Multi-Functional Processing Terminal Device Tester

Multi-Functional Underground Terminal Device Tester

Door Attachment Underground Terminal Device Tester

Testing device for inspecting the directional recloser control box body

Testing device for inspecting the directional recloser control box body – supporting all types, A, B, and C.

Integrated processing testing device – FIED

Integrated underground testing device

Characteristics

Power: 220V/60Hz
Operation: Push Switch, Toggle Switch
Display: LED, LCD
Status Signal and Control Signal: DRY Contact, Level Contact
Displaying the Voltage and Current for Inspection
Supporting the Failure Scenario Function
Supporting Power Supply to the Terminal Device Main Unit (DC or AC)
